    168 W Led Street Light

    Ask Lasest Price
    Brand Name : NOMO LED
    Certification : CE, UL,FCC, ISO, ROHS,SAA
    Model Number : ST168B
    Delivery Time : Within 15 working days
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 100000000sets
    • Product Details
    • Company Profile

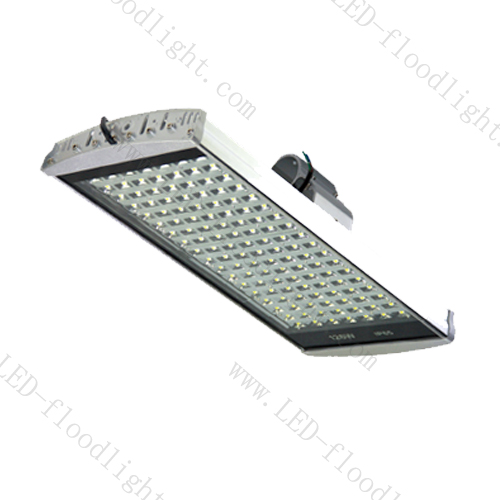

    168 W Led Street Light

    168W LED Street Light

    Product Description

    LED(168W) LED Street Lamp(168W) Suggested light replacement: 500W Sodium Lamp
    Part Number: LUX-L168WLight Size :308×750×80(mm)
    Parameter:
    LED LED Luminous Consumption  168W
    System Consumption  183W
    Color Temperature  2500K-10000K
    Working Temperature  -35℃~50℃
    Luminous Flux14280 lm±5%
    Protecting Grade  IP66
    Working Life  >50000 hours
    Average illuminationHeight 6M>80Lux
    Height 8M>45Lux
    Height 10M>34Lux
    Height 12M> 25 Lux
    Effective illuminated AreaHeight 6M8×20㎡
    Height 8M10×26㎡
    Height 10M13×33㎡
    Height 12M16×40㎡
    Light Distribution Curve/Beam PatternAsymmetric (Bat Wing)/ Rectangular Beam
    Chief MaterialAluminum Alloy
    Net Weight13 kg
    Packaging Size900×360×130(mm)
    Installing Hole Sizeφ61(mm)
    High Pressure Sodium Light Compare with LED Street Light
    ItemsHigh Pressure Sodium LightLED Street Light
    Photometric PerformanceBadExcellent
    Radiator PerformanceBadExcellent
    Electric PerformanceElectric Shock Easy( High Voltage)Safe (Low Voltage)
    Working LifeShort (5,000h)Quite Long (>50,000h)
    Working Voltage RangeNarrow (±7%)Wide(±20%)
    Power ConsumptionQuite HighQuite Low
    Startup SpeedQuite Slow( Over 10minutes)Rapid (2s)
    StrobeYes( Alternating Current Drive)No( Direct Current Drive)
    Optical EfficiencyLowHigh
    Color Index/ Distinguish FeatureBad, Ra< 50(The Color Of Object Is Faith, Boring, Hypnosis)Good, Ra>75(The Color Of Object Is Fresh, Veritable And Comfortable
    Color TemperatureQuite Low ( Yellow Or Amber , UncomfortableIdeal Color Temperature ( Comfortable)
    Bad GlareStrong Glare (Dazzle)No Harmful Glare
    Light PollutionStrongNo
    HeatingSerious (>300℃)Cold Light (<60℃)
    Lampshade Turn DarkEasy ( Absorb Dust)No ( Static Proof)
    Lamp Aging Turn YellowIn A Short TimeNo
    Shockproof PerformanceBad(Fragile )Good (No Filament Nor Glass)
    Environment PollutionContains Mercury Element Etc.No
    Maintenance CostHighQuite Low
    Product CubageBigSmall (Slim Appearance)
    Cost-EffectiveLowHigh
    Product WeightHeavyLight
    Integrated PerformanceBadExcellent
    The comparison of 10km Five-year total cost between LED Street Light and Traditional Street Lamp
     LED Street LightTraditional Street Lamp
    Lamp Power168W350W
    Total Power183W350W+150W(With Converter)
    12 hours183W*12 hours500W*12 hours
    Consumption= 2.196 kw/h=6 kw/h
    5 Year2.196kw/h*365 days *5 year6 kw/h*365 days *5 year
    Consumption=4007.7 kw/h=10950 kw/h
    10km 666 pcs Lamps 5 Year Consumption4007.7kw/h*666pcs=10950 kw/h *666pcs=
    2669128 kw/h7292700 kw/h
    Electric Bill26669128kw/h*0.2USD=533826USD7292700kw/h* 0.2USD=1458540USD
    Each Lamp Cost568 USD200 USD
    666pcs Lamp Cost378288 USD133200 USD
    5 Year Use Lamp666 pcs3330 pcs
    5 Years Total Cost378288(lamp) + 533826666000(lamp)+1458540
    =912114 USD=2124540 USD
    5 Years Save Cost1212426 USD
    Luminous Efficacy80lm/W40lm/W
    IlluminationMeet national standardsMeet national standards
    ControlIntelligence controlNo
