MSL 5000 solar street light for a wide range of exterior lighting
applications
Brief Introduction.
Nomo smart LED solar street light has an elegant integrated
aluminum alloy design and is one of the most convenient and
versatile solar street lights on the market! This fixture does not
require any wiring and is very easy to install and will
automatically turn on and off during night and day . Built-in
Intelligent controlling system to automatically compensate for
different weather conditions of the world most sunlight coverage
geography. True Dusk to Dawn feature, and able to light up to 3-4
in cloudy days illuminating time under IPM.
Features:
| 1. Patented Smart internet system, remote controlling, make the
real intelligent lighting. |
| 2. Solar panel auto-cleaning system(patent). |
| 3. Super brightness LED chip , > 180 lumen/W. |
| 4.Top level LiFePO4 battery , safe and long lifespan. |
| 5.High strength entirety aluminum profile, gorgeous and durable. |
| 6. Professional street light illumination distribution. |
| 7. Efficiency >21.5% solar cell. |
8. 90°X360°angle adjustable holder ,non-shadow.
9. No pollution, energy saving and environmental protection.
Product Specification :
Protection class: IP65 Light source :LED LifePO4 Battery:537.6WH Solar panel rate Power: 85(W) Solar panel Voltage :18 (V) Total luminous Flux: 5000LM LED Qty:32pcs Duration of sunshine :8 (h) Lifespan: 500000 (h) Monocrystalline solar panel:18V/85W Efficiency up to 21%
|
Technique specs
| PV Module | Pmax | 85W |
| Vmp | 18.2 |
| Voc | 21.7 |
| Cell efficiency | 20.6% |
| Number of cell in series | 35 |
| Dimension | 1160*418mm |
| LED chip | LED chip | LG/Cree/Nichia |
| Viewing angel | Viewing angel ,70°*150°IESNA TAPE II |
| Color Temperature: | 3000K~3500K(warm white)/6000K-6500K(cool white) |
| Color rendering index | >=70 |
| Nominal luminous flux | Tj=25℃:5000lm |
| Delivered Lumens | Tj=66℃:4500lm |
| Lifespan | 50000hours |
| Lifepo4 battery | Battery capacity | 537.6WH |
| lifespan | 5-8 years |
| Certification | CB, SGS, MSDS |
| Operating temperature | Charging 0-45℃ |
| Discharging -20-60℃ |
| Mppt controller | Working voltage/ current | 12.8v 10A |
| Work mode | Timing mode |
| Light control(capable of detecting day and night , automatically
turning on and off during night and day ) |
| PIR sensor mode (opitional0 |
| Protection | Incorporate protection from reverse polarity(solar panel or battery
), over-charge , over-discharge , over load , short circuit and
lightning |
Dimension

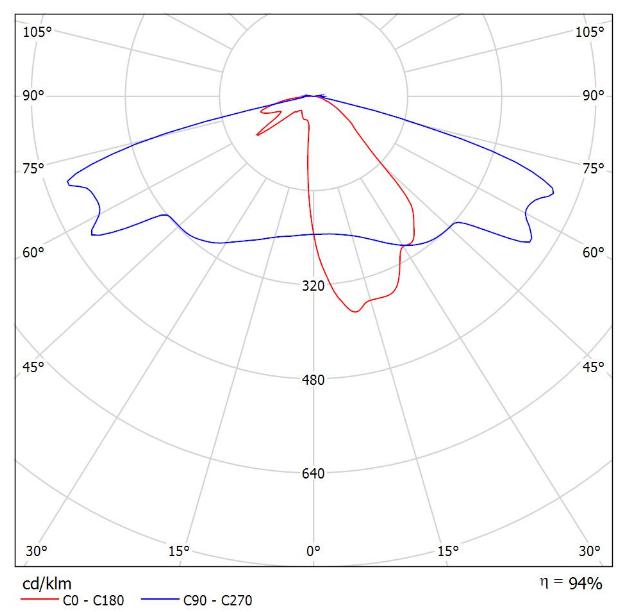

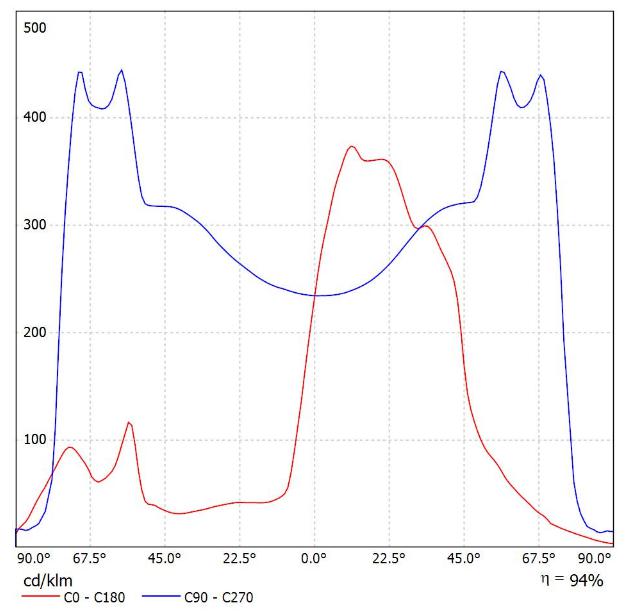

Lighting distribution:
Work mode(can be customised)
Dialux Simulation
Height:7m , width:7m,pole distance;20m , single sided arrangement
,simulated data
Packing/weight
Ø Qty:1pcs/Carton
Ø GW:29KG
Ø NW:26Kg
Ø Product size:1270×560×180mm≈0.128 m³
Ø Packing size 600*220*200mm≈ 0.03m3
Installation ;
I. Note:
●The work time depends on the weather condition, the season and the
location
● It is waterproof, but limited to rain and moisture( cannot
immerged into the water or stay in the water too long).
● Please be sure it is installed in a well-lit location where the
solar panel can get maximum sunlight during the day.
●.The fully charged street light can be stored up to six months.
Please take timely inspection and charge the battery after a long
time transportation and storage so that the battery can perform
well.
●. Facing south in the northern hemisphere and north in the
southern hemisphere. Slope angle should be adjusted according to
the local latitude. Solar panels must be installed in the sunny, no
houses, trees shade place so that they can receive light all day (
Minimum requirements:9.00 am - 16.00 PM without sunscreen,)
●.Keep cleaning the solar panel every few time so that the solar
panel can generate power at maximum efficiency.
II. The Installation Instruction
1.Pole installation . Pole length range from 4-8m with diameter
size 70-80mm, wall thickness over 3.0mm.

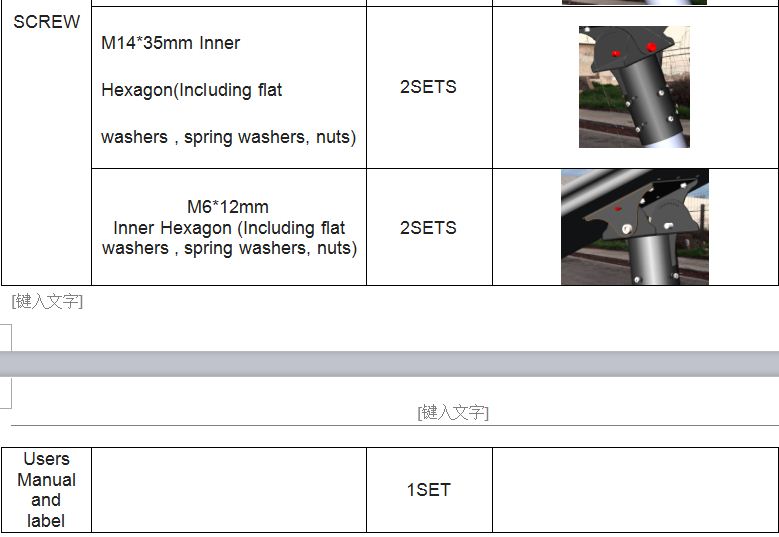

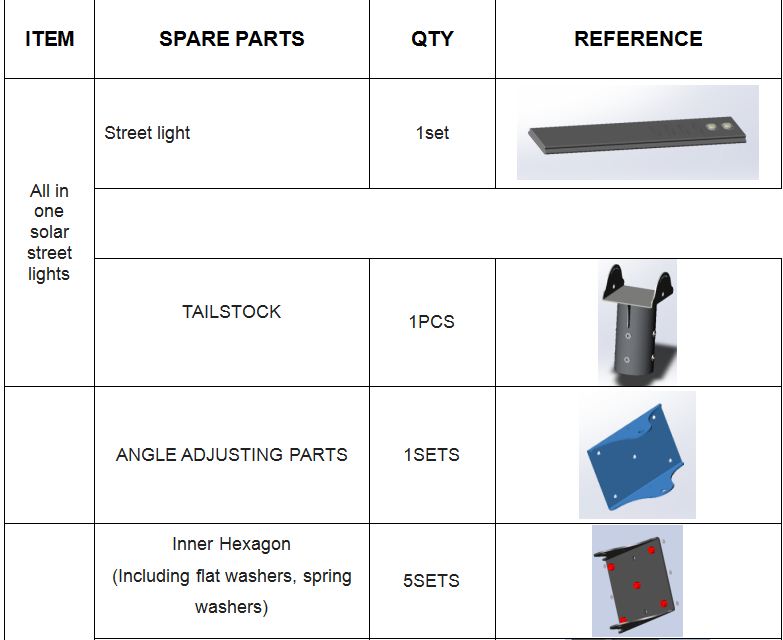

2. Check the spare parts as followings:
A:Angle adjustment plate installation, take out the hexagonal screw
M8 * 30mm, fixing the angle adjusting parts to the lamp body; as
shown below:3. Lamp Assembling
B: Connect the tailstock and the angle adjustment plate with M14 *
35 screws, then use M8 * 25mm screws to fix the angle ,the degrees
of angle adjustment of each hole is 10 degrees , according to the
local latitude , as shown below:
C: Install the tailstock of lamp on the lamp poles with M8 * 20mm
hex screw fastening, adjusting the irradiation direction of the
lamp .
After the above installation, open the lamp power switch, make sure
the following items fully comply with the future vertical poles.
- Cover the solar panel, waiting about 20 seconds, the light source
confirmation work.
- The solar panel facing the sun , wait about 10 seconds, the lights
are off.
- Ensure each screw for each part is fastened.
Application:
Rural lighting；patio lighting； Building Parking ； Bike Path
；Suitable for Courtyard / Garden / Park / Street / Roadway /
Pathway / Parking Lot / Private Road / Sidewalk / Public Square /
Plaza / Campus / Farm & Ranch / Perimeter Security / Wildlife area
/ Remote Area / Military Base
